Auditing Salesforce Permission Hierarchies with ForceHound

The Problem Nobody Graphs

Salesforce organizations are designed to be dynamic, evolving as a business grows. Over time, an organization naturally accumulates layers of access: a profile for a new department, permission sets for specialized tasks, and sharing rules to refine data visibility as teams expand. When multiplied by hundreds of users and various integrated applications, the resulting web of permissions becomes a complex “identity graph” that requires modern tools to manage effectively.

In previous posts, we explored the importance of secure development practices in Apex and the need for robust governance over third-party Connected App integrations. By visualizing these individual configurations as a unified graph of relationships, organizations can more easily identify redundant access and ensure that even low-privilege sessions remain strictly within their intended boundaries.

Why Attack-Path Analysis for Salesforce?

While Active Directory has had BloodHound since 2016, Salesforce has lacked a similar model structure until the recent open sourcing of SpecterOps OpenGraph technology allowing the graphing of arbitrary programs.

In Salesforce, permissions are computed as a union across multiple layers:

If you’re coming from an AD background, this table maps the concepts:

Salesforce Concept	Rough AD/Azure Equivalent	ForceHound Node
Profile	Primary role assignment (one per user, mandatory)	SF_Profile
Permission Set	Additional Group Membership	SF_PermissionSet
Permission Set Group	Nested Group	SF_PermissionSetGroup
Role Hierarchy	Manager hierarchy (no direct AD equivalent; controls record visibility inheritance)	SF_Role
Organization-Wide Defaults	Default ACLs	SF_Organization properties
Connected App	Registered OAuth App / Service Principal	SF_ConnectedApp
Share Object	Explicit ACE on a resource	SF_Record edges

ForceHound makes these relationships queryable as a graph. Questions like “which users can reach ModifyAllData through any combination of profile, permission set, and permission set group assignments?” become a Cypher query instead of a spreadsheet exercise.

How ForceHound Works: Three Collection Modes

ForceHound supports three collection modes to accommodate different levels of access within an org.

API Mode (--collector api)

This is the privileged path that uses simple_salesforce against the Salesforce REST API and requires a user with ApiEnabled and sufficient object visibility, typically a system administrator.

This method will execute up to 20 SOQL queries via query_all() (which handles pagination automatically), covering the full identity surface:

python -m forcehound \
  --collector api \
  --instance-url "https://yourorg.my.salesforce.com" \
  --username "$SF_USERNAME" \
  --password "$SF_PASSWORD" \
  --security-token "$SF_SECURITY_TOKEN" \
  -o graph.json

Authentication supports both session tokens (--session-id) and username/password/security-token combinations. Environment variables are supported for all credentials. Prefix any flag name with FORCEHOUND_ (e.g., FORCEHOUND_USERNAME, FORCEHOUND_BH_TOKEN_ID).

Aura Mode (--collector aura)

This is the low-privilege option, and the default mode. It uses Lightning/Aura framework endpoints, the same ones the Salesforce browser UI calls. No ApiEnabled permission required, no admin access needed. You just need a browser session.

Extract the sid cookie, aura.context, and aura.token from your browser’s DevTools (Network tab, any Aura request), and ForceHound will enumerate the org’s identity graph using those same endpoints.

python -m forcehound \
  --collector aura \
  --instance-url "https://yourorg.lightning.force.com" \
  --session-id "$SID_COOKIE" \
  --aura-context "$AURA_CONTEXT" \
  --aura-token "$AURA_TOKEN"

Aura mode collects Users (with full Profile capability data via relationship field traversal), PermissionSets (with all 15 capability permissions), Roles, Groups, GroupMembers, and managed-package namespaced objects. Collection runs asynchronously via aiohttp with 30 concurrent workers by default (--max-workers to tune).

What Aura cannot collect: PermissionSetGroupComponent relationships (the membership links between Permission Set Groups and their constituent Permission Sets), ObjectPermissions (CRUD grants), FieldPermissions (FLS), ConnectedApps, Share objects, and Organization-Wide Defaults. These require REST API access.

On a red team engagement, this is significant. From a standard user session with zero admin privileges, you can build a partial identity graph that reveals role hierarchies, group memberships, and which profiles grant dangerous capabilities like ModifyAllData.

Both Mode (--collector both)

Runs Aura first to collect the identity core (users, profiles, roles, groups, permission sets), then supplements with API queries covering what Aura can’t reach: PermissionSetGroupComponent relationships, ObjectPermissions CRUD, FieldPermissions, EntityDefinition metadata, ConnectedApps, SetupEntityAccess, and Organization-Wide Defaults. The result is the same complete graph you’d get from the API collector alone, but with fewer SOQL queries hitting your org’s REST API. Aura requests don’t count against the Salesforce API quota, so the Aura collector handles as much as it can before handing off to the API for the rest.

Use this mode when you have both low-privilege browser access and API credentials. This is common during authorized assessments where the client provides credentials but you also want to capture what the Aura session reveals independently. Aura shows what a browser user can enumerate. The API fills in the structural relationships that make the graph complete.

The graph builder merges results from both collectors. Nodes are deduplicated by ID, with kinds unioned and properties merged. Edges are deduplicated by the tuple of (source, kind, target). If the Aura session has expired or fails, the collector falls back to full API mode automatically.

# Both mode: Aura session + API credentials for supplemental queries
python -m forcehound \
  --collector both \
  --instance-url "https://yourorg.lightning.force.com" \
  --session-id "$SID_COOKIE" \
  --aura-context "$AURA_CONTEXT" \
  --aura-token "$AURA_TOKEN" \
  --api-instance-url "https://yourorg.my.salesforce.com" \
  --username "$SF_USERNAME" \
  --password "$SF_PASSWORD" \
  --security-token "$SF_SECURITY_TOKEN"

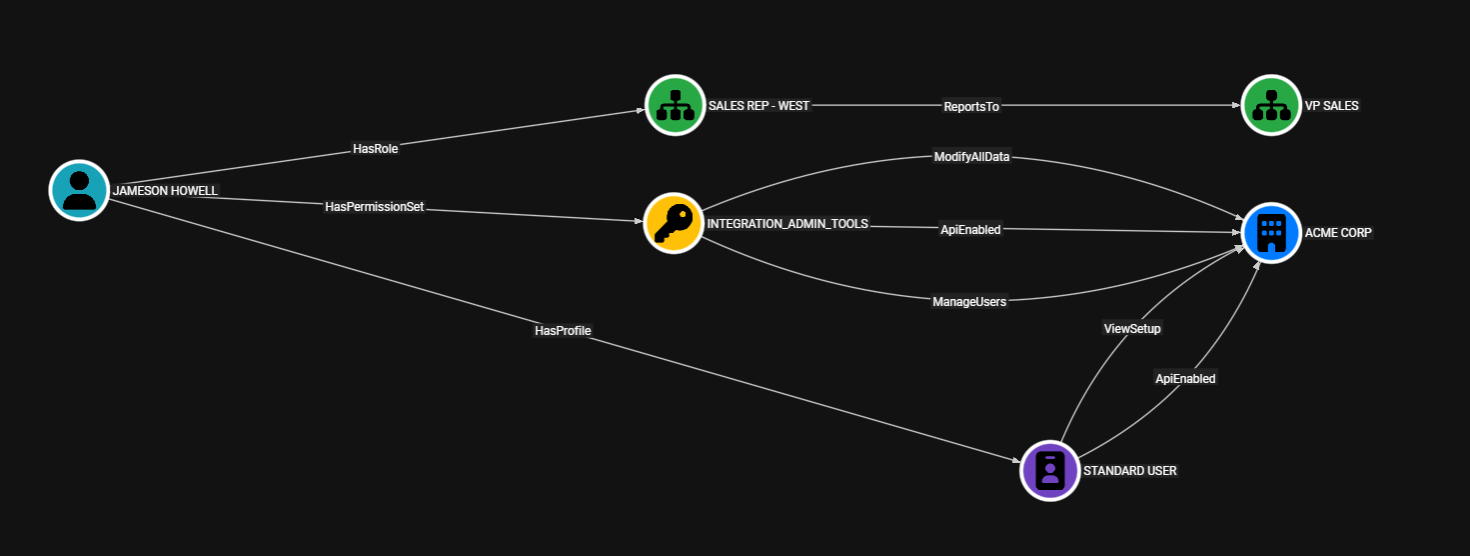

What ForceHound Sees: The Identity Graph

ForceHound produces a graph with 12 custom node types and over 40 edge kinds. Here’s what those edges represent.

Capability Edges (15 System Permissions)

These are the permissions that matter most for privilege escalation:

Each capability edge connects a Profile or PermissionSet to the Organization node, indicating that the entitlement grants that system-level capability. If you’ve read our previous Connected App post, you’ll recall the attack chain where the attacker exfiltrated Apex source code, found hardcoded AWS credentials stored in a Custom Metadata Type, and pivoted from the Salesforce Org to the company’s AWS infrastructure. ForceHound maps exactly which profiles and permission sets grant dangerous capabilities and which users are assigned to them.

Empirical CRUD Probing

ForceHound’s API and Aura collectors build their permission graphs from metadata: ObjectPermissions records, Profile capability flags, PermissionSet assignments. This is how Salesforce says your permissions work. Salesforce administrators know that what the metadata describes and what actually happens at runtime don’t always agree.

The --crud flag takes a different approach. Instead of reading permission metadata, it tests what the current user can actually do. For every accessible object in the org, ForceHound attempts to create a record, edit it, and (in --aggressive mode) delete it. The results are recorded as CrudCanCreate, CrudCanRead, CrudCanEdit, and CrudCanDelete edges in the graph. These edges represent proven access, not inferred access.

# Empirical CRUD probing (Aura mode)
python -m forcehound \
  --collector aura \
  --instance-url "https://yourorg.lightning.force.com" \
  --session-id "$SID_COOKIE" \
  --aura-context "$AURA_CONTEXT" \
  --aura-token "$AURA_TOKEN" \
  --crud \
  -o crud_results.json

The prober handles dependency ordering automatically. Salesforce objects reference each other through lookup and master-detail relationships. You can’t create a Contact without an AccountId if the field is required. ForceHound builds a dependency graph via topological sort and probes parent objects first so that child objects have valid reference IDs available when they need them.

A few flags are worth knowing:

Flag	What It Does
--crud	Enable CRUD probing (create, read, edit). Self-created records are cleaned up automatically.
--aggressive	Edit every record (reveals record-level sharing differences) and delete one existing record per object type. Protected identity objects are excluded from deletion unless --unsafe is passed.
--unsafe	Allow delete-probing of protected identity/config objects (User, Profile, PermissionSet, Role, etc.) by deleting the self-created record. Requires --aggressive.
--crud-dry-run	Show what would be probed without executing any DML
--crud-objects Account, Contact	Limit probing to specific objects
--crud-concurrency 10	Tune concurrent probe requests (default: 5)
--crud-max-records 50	Cap records tested per object in aggressive edit mode (default: no cap)

In --aggressive mode, ForceHound saves a deletion log (forcehound_deletions_<timestamp>.json) recording every record it deletes, including the full field state of each record before deletion. Protected identity objects (User, Profile, PermissionSet, etc.) are excluded from deletion by default unless --unsafe is explicitly passed.

The difference between metadata-derived CRUD edges and empirically-proven CRUD edges is important on engagements. Telling a client “your ObjectPermissions say this user can create Account records” is one thing. Telling them “we created an Account record with this user’s session and here’s the proof” is another.

BloodHound CE Integration

ForceHound outputs BloodHound-compatible JSON and can upload directly to a BloodHound CE instance.

The --upload flag triggers a three-step upload workflow: create an upload job, send the graph JSON, and trigger ingestion. The --setup flag is a standalone operation that registers 12 custom node types with distinct Font Awesome icons and color codes (teal users, purple profiles, gold permission sets, red connected apps) and then exits. The visual distinction matters when you’re staring at a graph with thousands of nodes. Run --setup once before your first upload.

The --new-format flag outputs OpenGraph v1 format with metadata.source_kind: "Salesforce", which enables Cypher queries scoped to the Salesforce graph. The --clear-db flag wipes the existing graph before upload for clean collections.

# First run: register custom node types
python -m forcehound --setup \
  --bh-url "http://localhost:8080" \
  --bh-token-id "$TOKEN_ID" \
  --bh-token-key "$TOKEN_KEY"

# Collect, clear DB, upload
python -m forcehound --collector api \
  --instance-url "$INSTANCE_URL" \
  --session-id "$SESSION_ID" \
  --new-format \
  --upload \
  --clear-db \
  --bh-url "http://localhost:8080" \
  --bh-token-id "$TOKEN_ID" \
  --bh-token-key "$TOKEN_KEY"

The BloodHound CE client uses Python stdlib only: urllib for HTTP and HMAC-SHA256 for request signing. No requests dependency.

Audit Logging

Red team engagements require accountability. If you’re running ForceHound against a client’s production org, you need a reviewable artifact that answers who ran it, when it ran, and what it touched.

The --audit-log flag produces a timestamped JSONL file (forcehound_audit_<timestamp>.jsonl) that records every HTTP interaction with the Salesforce org. Three verbosity levels control the detail:

Level	What’s Recorded	Use Case
--audit-log 1	Timestamp, operation, target object, HTTP status	Quick activity ledger, one line per request, greppable
--audit-log 2	Level 1 + request duration, HTTP headers, error detail	Operational debugging during collection
--audit-log 3	Level 2 + full request body and full response body	Forensic reconstruction, complete record of every request and response

The log format is JSONL with fields aligned to the OCSF API Activity schema (class_uid 6003). Enterprise SOC teams already have SIEM normalization rules for OCSF. A ForceHound audit log at level 3 can be ingested directly into Splunk, Elastic, Microsoft Sentinel, or AWS Security Lake with minimal configuration.

# Collect with full forensic audit logging
python -m forcehound \
  --collector aura \
  --instance-url "https://yourorg.lightning.force.com" \
  --session-id "$SID_COOKIE" \
  --aura-context "$AURA_CONTEXT" \
  --aura-token "$AURA_TOKEN" \
  --audit-log 3 \
  -o graph.json

The audit log includes a session start event (with collector type, CLI arguments, and a credential warning), per-request events with sequential numbering, and a session end event with summary statistics. At level 3, no data is truncated. Every request body and response body is recorded in full. Treat level 3 logs as credential artifacts since they contain the session ID used during collection.

Performance and Scope Control

Large orgs can produce massive graphs. Several flags let you control scope:

Flag	What It Skips	When to Use
--skip-object-permissions --skip-field-permissions --skip-shares	SF_Object nodes + all 7 CRUD edge kinds SF_Field nodes + CanReadField/CanEditField/FieldOf edges SF_Record nodes + Owns/ExplicitAccess/InheritsAccess edges	Identity-only analysis; dramatically reduces output size Skip field-level security detail Orgs with millions of sharing records
--active-only	Inactive user accounts	Focused on current attack surface

For identity-path analysis (which users can reach which capabilities), --skip-object-permissions alone often reduces the graph by 90% or more while preserving all capability, assignment, and role hierarchy edges.

Conclusion

What I hoped to accomplish in this post was to walk through ForceHound’s collection capabilities and what it produces. The tool pulls identity and permission data from your Salesforce org using whatever level of access you have available and outputs a graph that BloodHound CE can ingest. Whether that’s a full API collection, a low-privilege Aura session, or both combined, the result is the same graph structure.

ForceHound is open source and available at https://github.com/NetSPI/ForceHound. Thanks for reading.
