Amazon recently introduced messaging and calling between Echo devices. This allows Echo device owners to communicate to each other via text messages, audio recordings, and voice calls. It’s pretty handy for leaving someone a short note, or for a quick call, but as a hacker, I was more curious about the potential security issues associated with these new features. There have already been a couple of articles recently published that deal with some of the privacy concerns about the features, so we will be going deeper into the technical side of things for this post.

Enumerating Echoes

The “Amazon Alexa” mobile application can take in your phone’s contact list and look up potential call contacts via their phone number. I was finding a surprising number of Echos in my contact list, so I figured the next step would be to try enumerating Echos that were not (yet) in my contact list.

In order to do this, I needed to import new contacts into my phone with the phone numbers that I wanted to check for Echo devices. Creating the contacts was pretty simple using some Excel magic and the CSV contact import function in Gmail. So I fired up my throwaway Gmail account and added the entire 612-555-XXXX range (10,000 numbers) into my contacts list.

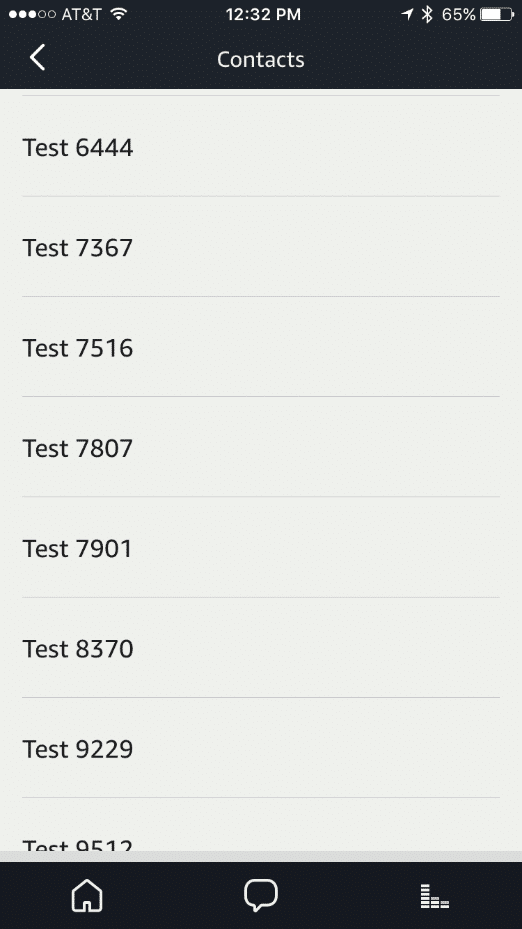

For the privacy of the numbers listed below, I’ve changed the second set of numbers in the range to 555. To keep track of each number that I imported, I added the last name as “Test 1234”, where 1234 was the last four digits of the number that I was trying.

Taking this route, I was able to identify 65 Echo devices in my phone number’s exchange range.

Given that I was only able to find 65 Echo devices (of the more than 11 million sold), I guess that my number’s range isn’t very active.

Google’s upper limit of contacts is 25,000 (Source), so I could potentially cover 2.5 ranges at once with one Gmail account. Given that there are 1,117 exchange ranges in the Minneapolis 612 area code (Source), it would take 447 rounds of this method to cover all of the 612 ranges. Alternatively, you could potentially add additional Google accounts to your phone and cut down the number of contact upload rounds. Please keep in mind that Amazon is monitoring for massive contact uploads, so don’t try this at home.

Side Note: For all of the following examples, I proxied the Alexa iOS application traffic through Burp Suite Professional, using an SSL certificate that was trusted by my device.

Once an Echo device is added to your Amazon contact list, you will be able to see that the contact will have a specific Amazon ID tied to their account. These 28-character, alpha-numeric IDs are used with the APIs for interacting with other Echo devices. Here is one of the records that would be returned from my contacts list.

HTTP/1.1 200 OK
Server: Server
Date: Wed, 31 May 2017 23:12:58 GMT
Content-Type: application/json
Connection: close
Vary: Accept-Encoding,User-Agent
Content-Length: 63644

[{"name":{"firstName":"Karl","lastName":"Fosaaen"},"numbers":[{"number":"+1612[REDACTED]","type":"Mobile"}],"number":"+1612[REDACTED]","id":"bf[REDACTED]88","deviceContactId":null,"serverContactId":"bf[REDACTED]88","alexaEnabled":true,"isHomeGroup":false,"isBulkImport":false,"isBlocked":null,"sourceDeviceId":null,"sourceDeviceName":null,"commsId":["amzn1.comms.id.person.amzn1~amzn1.account.MY_AMAZON_ID"],"commsIds":[{"aor":"sips:id.person.amzn1~amzn1.account.MY_AMAZON_ID@amcs-tachyon.com","id":"amzn1.comms.id.person.amzn1~amzn1.account.MY_AMAZON_ID"}],"homeGroupId":null,"commsIdsPreferences":{"amzn1.comms.id.person.amzn1~amzn1.account. MY_AMAZON_ID":{"preferenceGrantedToContactByUser":{},"preferenceGrantedToUserByContact":{}}}},[Truncated]

Sending Text Messages

By proxying the iOS application traffic, we can also see the protocol used for creating text and audio messages. The protocol is pretty simple. Here’s the POST request that we would use to generate a new text message to the “THE_RECIPIENT_ID” user that we would have previously enumerated.

POST /users/amzn1.comms.id.person.amzn1~amzn1.account.YOUR_AMAZON_SOURCEID/conversations/amzn1.comms.id.person.amzn1~amzn1.account.THE_RECIPIENT_ID/messages HTTP/1.1
Host: alexa-comms-mobile-service-na.amazon.com
X-Amzn-ClientId: [Truncated]
Content-Type: application/json
X-Amzn-RequestId: [Truncated]
Accept: */*
Connection: close
Cookie: [Truncated]
User-Agent: Amazon Alexa/2.0.2478/1.0.2992.0/iPhone8,1/iOS_10.3.2
Content-Length: 170
Accept-Language: en-us

[{"payload":{"text":"Hey. This is Karl. I'm testing some Amazon stuff. I promise I won't spam you over this. "},"time":"2017-05-31T23:17:20.863Z","type":"message/text"}]

Sending Audio Messages

The audio side of things is a little different. First you have to upload your audio file (which you can overwrite with a proxy), then you send someone a link to the audio file. Here’s what the upload request and response would look like.

HTTP POST Request:

POST /v1/media?include-transcript=true HTTP/1.1
Host: project-wink-mss-na.amazon.com
Accept: */*
Authorization: [Truncated]
Accept-Language: en-us
Content-Type: audio/aac
X-Authorization-Act-As: amzn1.comms.id.person.amzn1~amzn1.account.YOUR_AMAZON_SOURCEID
Content-Length: 39881
User-Agent: Amazon Alexa/2.0.2478/1.0.2992.0/iPhone8,1/iOS_10.3.2
Connection: close
X-Amzn-RequestId: 82DFDC97-65AE-4379-AE2D-77261AD13191
X-Total-Transfer-Length: 99150

[Truncated m4a audio file to be uploaded]

HTTP Server Response:

HTTP/1.1 201 Created
Server: Server
Date: Wed, 31 May 2017 23:26:01 GMT
Content-Type: application/json
Connection: close
Location: https://project-wink-mss-na.amazon.com/v1/media/arn:alexa:messaging:na::mediastorageservice:amzn1.tortuga.2.07ec8e8a-652a-46a7-8fe2-968980e1d8d0.RD02REDACTEDCOT
Vary: Accept-Encoding,User-Agent
Content-Length: 170

{"id":"arn:alexa:messaging:na::mediastorageservice:amzn1.tortuga.2.07ec8e8a-652a-46a7-8fe2-968980e1d8d0. RD02REDACTEDCOT","transcript":null,"transcriptStatus":null}

The “id” above can then be used for an audio message, in a request that looks like this.

POST /users/amzn1.comms.id.person.amzn1~amzn1.account.YOUR_AMAZON_SOURCEID/conversations/amzn1.comms.id.person.amzn1~amzn1.account.THE_RECIPIENT_ID/messages HTTP/1.1
Host: alexa-comms-mobile-service-na.amazon.com
X-Amzn-ClientId: DEF9FF9C-86EC-4C2E-BFFB-8C6D2A601D31
Content-Type: application/json
X-Amzn-RequestId: 9F4439B8-66FB-496B-820F-E7A96089F588
Accept: */*
Connection: close
Cookie: [Truncated]
User-Agent: Amazon Alexa/2.0.2478/1.0.2992.0/iPhone8,1/iOS_10.3.2
Content-Length: 205
Accept-Language: en-us

[{"payload":{"mediaId":"arn:alexa:messaging:na::mediastorageservice:amzn1.tortuga.2.07ec8e8a-652a-46a7-8fe2-968980e1d8d0.RD02REDACTEDCOT"},"time":"2017-05-31T22:50:06.005Z","type":"message/audio"}]

At this point, the audio message will be delivered to the recipient in the mobile app, or the Echo will let the recipient know there’s a new message.

Next Steps

So at this point, we’ve enumerated a city’s worth of Echo devices, figured out how to send text and audio messages to all of them, and we have a moral obligation to do the right thing. In the spirit of the last item, I’ve been in contact with the Amazon security team about this and they’ve been really great to work with on the disclosure process. They have already implemented some controls to prevent abuse with these features, and I’m looking forward to diving into the next set of features that they add to the Echo devices.

Karl Fosaaen
